    FESTO TYPE ISO6431-2 Standard DNC Pneumatic Cylinders

    Ask Lasest Price
    Brand Name : XINYAN
    Model Number : DNC80x200
    • Product Details
    • Company Profile

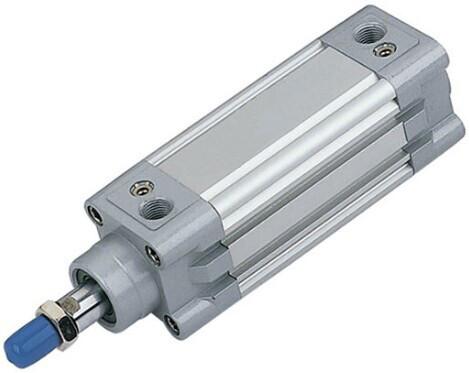

    FESTO TYPE ISO6431-2 Standard DNC Pneumatic Cylinders

    •Application of new seal material and buffer structure

    •Low start pressure

    •Stable operation

    •Fine tightness

    Long service life

    Energy conservation and environmental protection, can recycle

    •Beautiful appearance

    •Widely used in automatic devices, e.g. light industry, chemical industry, textile, electron,machinery, etc

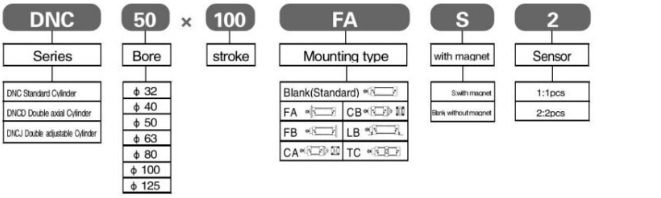

    DNC

    63

    50

    PPV

    A

    O

    S2

    |

    Model

    DNC: Fixed Type

    DNCF: With Buffer Type

    PNC: Micky Mouse Barrel

    |

    Bore

    |

    Stroke

    |

    Buffer

    Blank: Non

    Buffer

    PPV: Attach

    Buffer

    |

    Magnet Code

    Blank: Standard

    Type

    A: Inside Magnet

    |

    Fixed Type

    Blank:Basic Type

    LB: Front and

    Back Fixed Type

    FA: Front Cover

    Fixed Type

    SDB: Back Cover

    Swinging Type

    |

    S2:Double Piston Rod

    K2: Lengthen Out Screw

    K3:Front in Screw Thread

    K5:Out Standard Screw Thread

    K8:Lengthen Riston Rod


    Bore ( mm )

    32

    40

    50

    63

    80

    100

    Motion Pattern

    Filtered Air

    Working Medium

    Double Action

    Compression Pressure

    1.5MPa

    Max.Operating Pressure

    1.0MPa

    Min.Operating Pressure

    0.1MPa

    Buffer

    Air Buffer ( Standard )

    Ambient Temperature

    5~60℃

    Operating Speed

    50~500mm/s

    Margin of Stroke Error (mm)

    0~250+1.0 251~1000 +1.5 1001~1500 +2.0

    Operating Life

    Not Less Than 4000Km

    Lubricate

    Not Necessary

    Port Size

    1/8”

    1/4”

    3/8”

    1/2”
