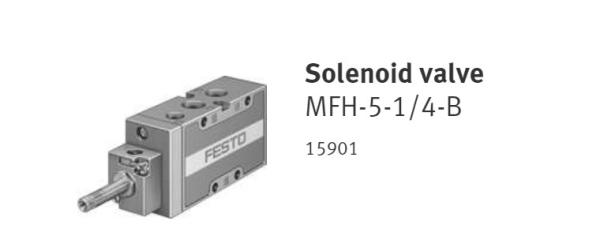

    Solenoid valve MFH-5-1/4-B 15901

    Ask Lasest Price
    Brand Name : FESTO
    Model Number : MFH-5-1/4-B 15901
    • Product Details
    • Company Profile

    Solenoid valve MFH-5-1/4-B 15901

    • Valve function5/2-way, monostable
    • Type of actuationElectric
    • Construction width32 mm
    • Standard nominal flow rate1300 l/min
    • pneumatic working portG1/4
    • Operating pressure0.2 MPa ... 1 MPa
    • Operating pressure2 bar ... 10 bar
    • DesignPoppet seat
    • Type of resetMechanical spring
    • Nominal size7 mm
    • Grid dimension33 mm
    • Exhaust-air functionWith flow control option
    • Sealing principleSoft
    • Mounting positionoptional
    • Manual overrideNon-detenting
    • Type of pilotingPilot actuated
    • Pilot air supplyInternal
    • Flow directionNon-reversible
    • Symbol00991035
    • lapUnderlap
    • b value0.29
    • C value5.5 l/sbar
    • Max. switching frequency3 Hz
    • Switching time off36 ms
    • Switching time on12 ms
    • Max. positive test pulse with 0 signal2200 µs
    • Max. negative test pulse with 1 signal3700 µs
    • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
    • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
    • Corrosion resistance class CRC1 - Low corrosion stress
    • LABS (PWIS) conformityVDMA24364-B1/B2-L
    • Storage temperature-40 °C ... 60 °C
    • Media temperature-10 °C ... 60 °C
    • Ambient temperature-5 °C ... 40 °C
    • Product weight300 g
    • Electrical connectionVia F coil, to be ordered separately
    • Type of mountingEither: On PR rail With through-hole
    • Pilot exhaust port 84M5
    • Pneumatic connection, port 1G1/4
    • Pneumatic connection, port 2G1/4
    • Pneumatic connection, port 3G1/4
    • Pneumatic connection, port 4G1/4
    • Pneumatic connection, port 5G1/4
    • Note on materialsRoHS-compliant
    • Material sealsNBR TPE-U(PU)
    • Material housingDie-cast aluminium
